+24-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
38ft Long
-
12,009 lbs
-
Sandstone, Gold Dust, Raven, Domino

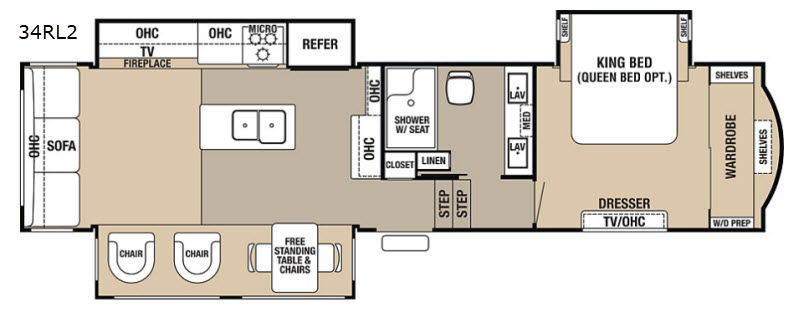

34RL2 Partial Paint Floorplan
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 37 ft 11 in | Ext Width | 8 ft |
| Ext Height | 13 ft | Interior Color | Sandstone, Gold Dust, Raven, Domino |
| Exterior Color | Classic, Kristal, Midnight Mist | Hitch Weight | 2270 lbs |
| GVWR | 16270 lbs | Dry Weight | 12009 lbs |
| Cargo Capacity | 4261 lbs | Fresh Water Capacity | 57 gals |
| Grey Water Capacity | 80 gals | Black Water Capacity | 40 gals |
| Tire Size | 16" | Furnace BTU | 40000 btu |
| Available Beds | King | Refrigerator Type | Stainless Steel |
| Refrigerator Size | 19 cu ft | Cooktop Burners | 3 |
| Number of Awnings | 1 | AC BTU | 15000 btu |
| TV Info | LR 55" LED TV, BR 32" LED TV | Awning Info | 16' Electric |
| Axle Count | 2 | Washer/Dryer Available | Yes |
| Shower Type | Shower w/Seat | Electrical Service | 50 amp |
Description
Forest River Cedar Creek Hathaway Edition fifth wheel 34RL2 highlights:
- Triple Slide Outs
- Hung Wall Construction
- 2 inch walls / Aluminum Construction
- Plywood Floors and Roof
- Painted front Fiberglass Cap
- Rear Fiberglass Cap
- Sleeps Four People
- Kitchen Island with Double Sink
- Shower with Seat
Come see just how fun and comfortable your next camping trip can be with this 34RL2 Forest River Cedar Creek Hideaway Edition fifth wheel. With triple slide outs you will have plenty of living space throughout this model for your family of four. The combined kitchen and living area have plenty of space to relax plus there is a 55” LED TV, fireplace, and plenty of kitchen amenities such as a three burner range, 19 cu. ft. stainless steel refrigerator, and an island with a double sink. In the bathroom you can easily get ready for your day. Here you will find a toilet, sink, medicine cabinet, and a shower with a seat. Retreat to the front bedroom where you will find a queen bed, plenty of storage with the dresser and the large front wardrobe plus there is an area in the wardrobe that has been prepped for a washer and dryer and more!
With any Forest River Cedar Creek Hathaway Edition fifth wheel you will find Nev-R-Adjust brakes which allow for improved stopping power in half the distance. There is also an E-Z Lube rubber equalization system and E-Z Lube heavy duty axles. In the bedroom you will find extra wide mirrored closet doors plus a walk-in closet and the radius ceilings give added headroom. The kitchen is everything that you would expect to find and more from the stainless steel 30" over the range microwave, to the recessed stainless steel large oven, you won’t be disappointed! If you prefer a bit more conveniences throughout then you will enjoy the Hathaway Edition Package which includes a 36" fireplace with remote and storage, solid surface LG counter tops with an oversized stainless steel sink, Congoleum Carefree designer flooring, On Demand hot water heater, and so much more!
Features
- Handmade 2” x 2” - 16” (or less) on center sidewalls with individually fastened custom “L” brackets combined with 3M® Silaprene adhesives for a stronger frame without welding or lamination (475)
- “True” High Gloss Classic Gelcoat on all exteriors - the best of the best in fiberglass. Don’t accept “hi-gloss fiberglass” or “gel-coated” sidewalls - only True gelcoat stands the test of time
- 3M® Silaprene Bonded Sidewalls – resilient, grows stronger with age. Also has outstanding resistance to UV, heat, cold, moisture, oils, gasoline, highway chemicals, and creates a bond that cannot
- Sidewalls are bolted to the floor with 5/16" x 6-1/2" carriage bolts at each outrigger
- Glued R-7 fiberglass insulation expanded to its full capacity within the sidewall frame
- Slide rooms insulated on all five sides
Floors R-Value (R-45*)
- 3” Aluminum frame floor with in-floor heat ducting and radius “L” brackets combined with 3M® Silaprene adhesives
- Cambered 10” + 2” I-beam “Z” frame with large support outriggers and full length welds
- 5/8” Tongue and groove plywood floor is attached to the aluminum frame with Silaprene and screwed every 6”
- Fully enclosed 4’ x 8’ ABS removable panels for easier access into the underbelly. We use wood stringers to attach with no holes in the frame.
- Triple layer insulation enhances the protective values of plywood, vinyl, carpet, carpet pads, tank heaters, etc.
- 12 Volt tank heaters on all tanks
- Radiant shield insulation – 97% reflectivity, 3% emission
- Water lines are protected inside the floor and away from exterior walls
Roof R-Value (R-40*)
- Full length 3/8” wood roof decking for a full walk-on roof
- Triple layer insulation
- Aluminum Truss Rafters on 16” centers with 8” wide circular air duct
- Circular ducting combined with our high performance (bigger compressor) air conditioner gives Cedar Creek a 30% increase in air co
- Optional second Whisper Quiet roof mount air conditioner (Bedroom)
- Two ply – Tuff Ply rubber roof membrane
- Roof is bolted to sidewall with 5/16” x 3-1/2” carriage bolts
- Radiant shield insulation extends around to the bottom of the front cap – R Value 40, 97% reflectivity, 3% emission
- Attic Vent
Superior Performance
- Dexter® Axles/Brakes Suspension For Performance and Safety
- Nev-R-Adjust® Brakes are always properly adjusted for improved stopping power in half the distance
- E-Z Flex® rubber equalization system with 1/2” link plates and eight grease zerks per side
- Heavy duty axles with bronze bushings in shackles (No plastic bushings like our competitors)
- 16” Eight lug, ST, “G” rated, 14 ply tires on 7000 lb. Dexter® Axles
- 16” Eight lug, ST, “H” rated, 16 ply tires on 8000 lb. Dexter® Axles
Aluminum Frame Construction
- Cedar Creek’s famous all aluminum super-structure
- Bonded True High Gloss Classic™ Pearl gelcoat exteriors
- 100% Hehr automotive frameless windows
- Optional Level-Up 6-point hydraulic leveling system
- The Dexter® difference - safety and performance package
- Wired for wireless rear camera
- Soft top vinyl storm doors
- Remote control for slides, front hydraulic jacks, awning and security lights
- Black metal wrapped A&E awnings with LED night light strip
- Radiant Shield thermo-foil R-38 value
- Heating pads on all tanks
Exterior
- “True” pearl gelcoat exterior – truly the best of the best in gelcoat exteriors. 40% thicker and keeps it’s high gloss longer than our competitors less expensive exteriors.
- 16” 8-lug, ST, “G” rated tires on 7,000 lb. Dexter® axles, “H” rated tires on 8,000 lb. Dexter® Axles
- Prepped for wireless observation system
- 100% Hehr® automotive frameless windows with tinted safety glass – all windows open!
- 19 Cu. ft. stainless steel electric refrigerator with inverter and ice maker
- Central vacuum system with automatic dustpan and front storage connection
- Satellite pre-wire from docking station to both the living room and the bedroom
- Thicker 1-1/4” compartment doors with slam door latches and dedicated key lock
- Black metal wrapped electric awning with LED night strip
- 50 Amp service
- Solid state 55 Amp power converter
- Central docking station
- Ducted 15,000 BTU Duo-Therm “HP” (High performance) air conditioner with larger compressor, circular motion, 8” ductwork and cold air returns. Larger compressor forces 30% more air into the coach - th
- Braced and wired for second air conditioner
- Rear ladder
- Radius wrapped bottom metal skirt to the frame
- New door side cold water port
Dexter Safety and Performance Package (Standard)
- Nev-R-Adjust® brakes are always properly adjusted for improved stopping power in half the distance
- E-Z Flex™ rubber equalization system with 1/2” link plates and (8) grease zerks per side
- E-Z Lube®, heavy duty axles with bronze bushings in shackles
Living Room
- Ceiling fan
- (1) Barstool (N/A 34RE, 38FLX)
- Sculpted solid hardwood slide room fascia in living room
Kitchen
- Create-A-Breeze Fantastic fan with thermostat and rain sensor
- Stainless steel 30” over the range microwave vented to the outside
- Recessed stainless steel large oven with Piezo igniter, sealed burners and glass cover
- Large crown and cove molding throughout
- Free-standing table with hidden table leaf extension, (2) standard chairs and (2) folding chairs
Miscellaneous
- 12V battery disconnect
- Dometic comfort control center with dual zone control for heating and cooling
- Washer/dryer prep
- LP gas/carbon monoxide detector
- Smoke detector
- Suburban 40,000 BTU furnaces
- One year of Coach Net roadside assistance
- Membership to the Forest River Owner’s Group (F.R.O.G.)
Bedroom
- 32” LED Jensen television
- Ceiling mounted overhead reading lights with individual switches
- Radius ceilings with a full 6’9” of bedroom height
- Extra wide mirrored closet doors
- Walk-in closet
Hathaway Edition Package
- Cedar Creek’s famous all aluminum superstructure on 16” centers or less
- Front and rear “True” gelcoat, with front painted cap
- Jensen Home Theater System includes: 55” LED TV, swing arm, bracket, CD/DVD player, AM/FM stereo, weather band and J-Control app for your smart devices. Apple licensing is also included.
- 12V sound bar with 2 mid-tone speakers, 2 tweeters, 2 sub-woofers and 2 outside speakers
- Honey glazed, high sheen, European Beech cabinetry with hidden hinges
- 36” Fireplace with remote and hidden storage
- MorRyde® 5 tier, “Step Above” entry steps with easy lifting mount, extra wide, 32” friction hinge, entry door and “Soft Top” storm door
- LED Edison lighting fixtures with 4” LED ceiling lights
- 88” La-Z-Boy® sofa and recliner set with lifetime warranty on parts. (88’ sofa N/A 34RE, 38FLX)
- Solid surface LG® counter-tops with oversized 60/40 stainless steel sinks
- Self-closing drawer guides with silverware organizer
- Full residential pantry with 7 full extension drawers (N/A 34RE, 34RL2)
- Shaw® R2X stain and soil resistant carpeting in all living room and bedroom areas with rebounded carpet pad
- Jack and Jill bathroom with double bowl counter, 40% larger that a standard bath, with linen closet (34RL2, 36CK2, 38CK2, 38FBD, 38FLX)
- Serta® king mattress with full size head board
- Congoleum® Carefree™ designer flooring, throughout except in slides and bedroom
- One-piece ceramic backsplash
- Remote control for awning, slides, exterior lighting and front jacks
- On Demand hot water heater
- Day shades and night black out shades
Options
- Level-Up hydraulic 6-point leveling system
- Second 15,000 BTU ducted “Whisper Quiet” Penguin air conditioner
- Third 15,000 BTU ducted “Whisper Quiet” Penguin air conditioner with power management system
- 13 Cu. ft. side-by-side gas/electric refrigerator with raised wood fronts
- 20 Cu. ft. stainless steel French door electric refrigerator with pull-out lower freezer compartment, inverter and ice maker (N/A 34RL2)
- 30” Stainless steel convection oven/microwave
- Dishwasher (N/A 34RE, 34RL2, 38FLX)
- Upgraded Serta® “Heron Valley” luxury queen and king mattress
- Awning toppers with metal wraps
- 12’ Electric slide room awning with metal wrap (N/A 38FLX)
- 1-1/4” Bike rack receiver hitch
- Create-A-Breeze Fantastic fans with thermostat and rain sensor in the bedroom area
- Matching Chottoman with interior storage (Chair or ottoman - you decide)
- Full body paint - Classic, Midnight Mist, Kristal
- Heat pump on main air conditioner
- Theater seating IPO recliners (No charge)
- Power theater seating IPO recliners
- Vinyl flooring throughout
- LP generator prep
- Onan 5.5 kw Marquis Gold LP generator
- Cadet self-regulating bedroom wall heater (N/A 38FLX)
- Splendide® combination washer/dryer
- Splendide® stackable washer/dryer
- Wireless rear observation camera
- Dual pane windows
- Trail Air™ air ride hitch coupler
- 50 Amp cord reel
- Solar prep
- 200W Solar panels
- 12 Gal. gas/electric water heater
- Carpet with rebond carpet pad in living room
