+8-
Sleeps 5
-
3 Slides
-
Bath and a HalfRear Bath
-
41ft Long
-
32,000 lbs
-
Ashford, Nola, Solano

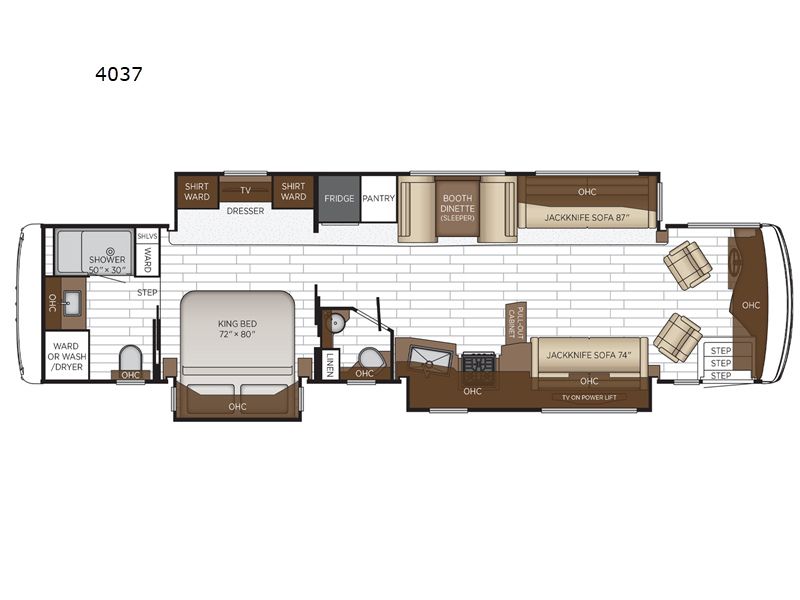

4037 Floorplan
Specifications
| Sleeps | 5 | Slides | 3 |
| Length | 40 ft 10 in | Ext Width | 8 ft 5 in |
| Ext Height | 12 ft 11 in | Int Height | 6 ft 11 in |
| Interior Color | Ashford, Nola, Solano | Exterior Color | Aquastone, Sahara, Sunset |
| Hitch Weight | 10000 lbs | GVWR | 39000 lbs |
| Dry Weight | 32000 lbs | Cargo Capacity | 7000 lbs |
| Fresh Water Capacity | 105 gals | Grey Water Capacity | 65 gals |
| Black Water Capacity | 45 gals | Furnace BTU | 54000 btu |
| Generator | 8.0 kW Cummins Onan Quiet Series | Fuel Type | Diesel |
| Engine | 6.7L Cummins B | Chassis | Freightliner XCR |
| Horsepower | 360 hp | Fuel Capacity | 100 gals |
| Wheelbase | 276 in | Available Beds | King |
| Torque | 800 ft-lb | Refrigerator Type | Norcold with Stainless Steel Front |
| Refrigerator Size | 10 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 3 | Shower Size | 50" x 30" |
| Number of Awnings | 1 | Axle Weight Front | 15000 lbs |
| Axle Weight Rear | 24000 lbs | LP Tank Capacity | 32 gals |
| Water Heater Capacity | 10 gal | Water Heater Type | Gas/Electric DSI |
| AC BTU | 30000 btu | Awning Info | Carefree Travel'r Power w/Alumaguard and LED Lights |
| Washer/Dryer Available | Yes | Gross Combined Weight | 49000 lbs |
| Shower Type | Standard | Electrical Service | 50 amp |
Description
Newmar Northern Star Class A diesel motorhome 4037 highlights:
- Bath and a Half
- Full-Wall Slide
- Booth Dinette/Sleeper
- 10 Cu. Ft. Norcold Refrigerator
- King Bed Slide Out
- Ours has been ordered with the following options / features:
- Freightliner Chassis, 360Hp, 40’ Northern Star
- Ashford Interior Decor
- Deneb Full Painted Exterior Graphics
- Cabinets Two-Tone Chiffon/Dusk Maple-Suede Finish
- Central Vacuum with Tool Kit
- Refrigerator Whirlpool 19.7 W/Heated Water Line W/2 Extra 6-Volt Batteries, 22 Gallon Propane Tank
- Washer/Dryer Splendide Two Piece Stacked
- Water Heater Truma Comfort Plus Continuous Flow
- Exterior Entertainment Center in Sidewall W/Samsung 43” LED Tv & Soundbar
- Radio Sirius Xm Capability with Antenna (does not include monthly subscription)
- Tv Samsung 32” LED in Front Overhead – Not Available W/Drop Down Bunk Option (K890)
- Dinette Euro Booth with 2 Table Leaves, Removable Table Leg & 2 Folding Chairs
- Mattress Air R5 Radius Corner
- Sofa Visionary Trifold 74” Ilo Jack Knife – Door Side
- Theatre Seating 87” (Powered) with Reading Lights & Lighted Cup Holders Ilo Jack Knife – Ods
- Solar Prep with 6 Guage Wire Ran from Roof to House Battery Compartment
- Windshield Temporary Protection – For Transport Only
With triple slides plus a bath and a half, this coach may just be the one! Once you arrive at the campground or antique fair, you can make a quick lunch with the 30" stainless steel convection microwave with a three burner cooktop and air fryer feature. There is also a pull-out cabinet to store spices, hand towels, and more. The booth dinette and two Jackknife sofas provide a place to dine, or you may want to take your plate and coffee outdoors under the Carefree Travel'r awning. A mid-coach half bath and full rear bath will allow everyone space to freshen up each day, and you're going to love the master bedroom with a king bed slide out, dual shirt wardrobes, plus your own Samsung LED TV.
Step right up to the diesel pusher lifestyle with Newmar's most affordable Class A diesel coach, the Northern Star! You will be met with a luxurious interior that includes maple cabinet doors, polished solid-surface countertops, Villa Comfort Fit furniture, and MCD window shades to name a few comforts. The Full-Paint Masterpiece Finish is ultra sleek, and the diamond shield protection on the front cap will help against debris, bugs, and more. The driver is sure to appreciate the V-Ride drive axle suspension, along with the anti-lock braking system and Mobileye lane tracking and lane departure warning system for added safety. Each model also includes a Samsung LED TV in the living room and bedroom, a 10" Sony dash radio, a Bose soundbar sound system, and more entertainment features to ensure you'll never go bored on rainy days!
Features
Standard Features
Exterior
- Full-Paint Masterpiece Finish™ with Clearcoat Finish
- Diamond Shield Protection on Front Cap
- Convex Exterior Mirrors with Remote Control and Defrost
- Entrance Door with Automatic Step
- Assist Handle at Entrance Door
- Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touchpad
- Mud Flaps
- Rear Ladder*
- Rear Hitch for Towing Car
- Undercoating
- Wheelchair Lift on 4011 Floor Plan
Optional
- Flagpole Bracket
- Storage Tray 30" x 90" Power Location-Bay 3
Construction
- Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
- Aluminum-Frame Sidewalls and Roof Construction, 16" on Center
- 5/8" Foam Insulation Laminated in Sidewalls and Ceiling
- Polar Pak R19 Batten Insulation in Roof
- One-Piece Molded Fiberglass Roof
- Automatic Mechanical Lock Arms on Slideout Rooms-Scissor Style
- Power Opening Entrance Door for Wheelchair Lift on 4011 Floor Plan
Optional
- Egress Door with Ladder System*
Chassis
- Freightliner® Chassis with 360Hp
- Aluminum Wheels
- V-Ride Drive Axle Suspension
- Cruise Control
- Manual Tilt and Telescope Steering Wheel with VIP Smart Wheel
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Anti-Lock Braking System
- Chassis Battery Disconnect
- Glass Dash Instrument Panel
- Dash Panel Optiview
- Headlights Automatic High Beam
- Mobileye® Lane Tracking and Lane Departure Warning System
Mechanical and Electrical
Windows, Awnings & Vents
- One-Piece Tinted Windshield
- Frameless Double-Pane Tinted Safety-Glass Windows
- Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
- Skylight Above Shower
- Carefree Travel’r Power Side and Entrance Door Awning with Alumaguard and LED Strip Lighting
- Slideout Awning Covers
- Kitchen Window
- Entrance Door to Lock/Unlock Automatically with Park Brake
Optional
- Screen Door Over Wheelchair Lift on 4011 Floor Plan
Air Conditioning & Heating
- Two 15K BTU Penguin™ Heat Pump Air Conditioners
- Propane Furnace with Ducted Heat
- Dash Heater and Air Conditioner
- Wall Mounted Sensors for Heating and Air Conditioning
- Built-In Overhead Defroster Blower Fan
Optional
- Electric Radiant Heat Installed Below Main Floor Tile
Electrical
- 8.0 kW Cummins Onan® Diesel Quiet Series Generator
- 50 Amp Electrical Service with Flexible Cord and Automatic Transfer Switch
- Automatic Generator Start on Low Battery or Temperature Setting
- Four 6-Volt House Batteries on Pull-Out Tray
- Battery Disconnect Switch for House Battery
- 2000w Pure Sine Inverter
- Emergency Engine Start Switch
- Energy Management System
- Exterior Security Light on Doorside
- Midship Side Turn Signals
- LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
- LED Awning Strip Lighting
- Manually Operated Hold-To-Run Slideout Switch
- 12-Volt Auxiliary Receptacle on Dashboard
- USB Charger At Dinette and Bedroom Nightstand
- USB Outlet at Dash for Driver Use
- 110-Volt USB Outlet at Head of Each Bunk Area*
- 110-Volt Recept in Bed Overhead with Two Pass-Through Ports
- Engine Block Heater
- Cable TV Connection
- Lights in Exterior Storage Compartments
- Interior Courtesy Lights
- Spare Fuses in Chassis Fuse Panel and House Fuse Panel
- Multiplex Monitor System 10.1" in Center of Coach with Interior Lighting and HVAC Controls
- Power Rewind Reel with 33' Cord*
- Dash Radio, Cameras and Monitors to Power-Up from both House Batteries and Ignition
- Wireless Phone Charger for Driver
Optional
- Transfer Switch with Surge Protector
Plumbing
- Demand Water System
- Sewage Holding-Tank Rinse
- Water Heater Bypass System
- Dometic® 321 China Bowl Stool or Macerator Stool*
- Exterior Shower
- Water Filter for Entire Unit
Interior
Cabinets & Furniture
- Dusk Maple Cabinets—Suede Finish
- Concealed Hinges on Cabinet Doors
- Drawers with Full Extension Ball Bearing Guides
- Fixed Pantry Shelves
- Cooktop Cover Flush, Matching Countertop Material
- Polished Solid-Surface Countertop in Kitchen with Undermounted Sink and Sink Covers
- Polished Solid-Surface Countertops in Bathroom and Bedroom
- Plush Pillow Top Mattress
- Lifts on Bed Top
- Front Seats with Six-Way Power
- Driver Seat with Vibrator for Mobileye® System
- Manual Footrest on Passenger Seat
- Desk with One Chair*
- Dinette Booth Williamsburg Convertible*
- Dinette with Power Adjustable Table, Bench Seat and Folding Chair on Wheelchair Accessible Floor Plan
- Villa Comfort Fit Furniture
- Mesh Cell Phone Holder at each Bunk Bed*
- Extended Rotation Concealed Hinge for Washer and Dryer Cabinet Door
Optional
- Chiffon Maple Cabinets—Suede Finish
- Mesa Glazed Maple Cabinets—Suede Finish
- Two-Tone Chiffon Maple and Dusk Maple Cabinets—Suede Finish
- Two-Tone Chiffon Maple and Mesa Glazed Maple Cabinets—Suede Finish
- Bunk Bed Drop-Down Over Driver and Passenger Seats—Extends to Windshield with Bunk Ladder*
- Combination Desk with Buffet Dinette Table, Two Fixed and Two Folding Chairs
- Euro Booth Dinette with Two Table Leaves, Removable Table Leg and Two Folding Chairs
- 87" Sofa Hide-A-Bed with Memory Foam Mattress
- 74" Sofa Visionary Trifold
- R5 Square Corner Air Mattress
- R5 Radius Corner Air Mattress
- 74" Powered Theater Seating with Reading Lights and Lighted Cup Holders
- 84" Powered Theater Seating with Reading Lights
- 87" Powered Theater Seating with Reading Lights and Lighted Cup Holders
- Two Recliners with Lampstand and Reading Lights
- Full Height Bed Base on 4011 Floor Plan
Appliances
- 30" Stainless Steel Convection Microwave with Three-Burner Cooktop and Air Fryer Feature
- 10 Gallon Gas/Electric Water Heater with Direct-Spark Ignition
- Prep for Two-Piece Washer and Dryer
- Air Horns
- 10 Cu. Ft. Norcold® Refrigerator with Stainless Steel Front
Optional
- 15 Cu. Ft. Norcold® Three-Door Refrigerator with Icemaker
- 19.7 Cu. Ft. Whirlpool® Refrigerator, Two Extra 6-Volt Batteries and 22 Gallon Propane Tank
- 19.7 Cu. Ft. Whirlpool® Refrigerator, Two Extra 6-Volt Batteries and 22 Gallon Propane Tank and Heated Water Line
- 11 Cu. Ft. Whirlpool® Refrigerator, Extra 6-Volt Batteries and 22 Gallon Propane Tank
- 11 Cu. Ft. Whirlpool® Refrigerator, Extra 6-Volt Batteries, 22 Gallon Propane Tank and Icemaker
- 30" Stainless Steel Convection Microwave with Air Fryer Feature in Kitchen Overhead
- Splendide® Two-Piece Stacked Washer and Dryer
- Fireplace in Living Area*
- Central Vacuum with Tool Kit
- Truma Comfort Plus Continuous Hot Water Heater
Interior
- Dash Panel Color Coordinated ABS
- Interior Assist Handle at Main Entry Door
- Power Stepwell Cover
- Inlayed Six Panel Design Interior Passage Doors
- Decorative Wall Art
- Padded Vinyl Ceiling Panels
- Tile Floor in Kitchen, Bathroom and Living Area
- Carpeting on Slideout Floors
- MCD Window Shades
- MCD Power Shades at Windshield and Manual Shades on Driver and Passenger Side Windows
- Fitted Cam-Quilted Bedspread with Picture Frame Accent and Accent Pillow
- Wastebasket in Kitchen Base Under Sink
Optional
- MCD Power Window Shades with Remote Control on 4011 Floor Plan
Entertainment
- Samsung® LED TV in Living and Bedroom Areas, TV Sizes Vary per Floor Plan*
- 50" Samsung® 4K LED Televator TV in Living Area, on Selected Floor Plans*
- 50" Samsung® on Televator with Fireplace on 4011 Floor Plan
- Dash Radio with Harman/JBL 180w Sound System and Subwoofer
- 10" Sony Dash Radio with Rear Coach Viewing, Apple CarPlay® and Android Auto™
- Bluetooth Microphone for Dash Radio
- Rearview Color Monitor System with Audio
- Side-View Cameras Displayed on Rearview Monitor Screen
- Winegard Digital Crank Up TV Antenna
- Satellite Prep on Roof
- TV Jack and 110-Volt Recept in Door Side Exterior Storage Compartment
- High-Definition Component Wiring
- Bose® Soundbar Sound System
- 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
Optional
- 32" Samsung® LED TV in Front Overhead*
- Exterior Entertainment Center in Sidewall with 43" Samsung® LED TV and Soundbar
- Exterior Entertainment Center in Storage Compartment with 43" Samsung® LED TV and Soundbar
- SiriusXM® Capability with Antenna (Does Not Include Monthly Subscription)
- WiFiRanger Denali/Spruce LTE
- WiFi System Everest with Aspen Interior Router
- Winegard Automatic Dome Satellite Dish-Std/HD, DIRECTV Std. and Bell Canada
- Winegard Automatic Open Face Satellite Dish-HD and Bell HD TV
- Winegard Automatic Open Face SWM Satellite Dish-DIRECTV Std/HD
- Winegard In-Motion Dome Satellite Dish-Std/HD, DIRECTV Std. and Bell Canada
- Winegard Rayzar Automatic Digital TV Antenna
- Starlink Internet System
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
Loading
Pine Acres RV Ltd is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and potential delivery fees. Manufacturer or similar pictures, specifications, and features may be used in place of actual units on our lot. Please contact us [email protected] for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing, or a specific interest rate or term is available. Payments are often times advertised with Tax Included but could also be plus tax in some cases, please check with your salesperson today.
